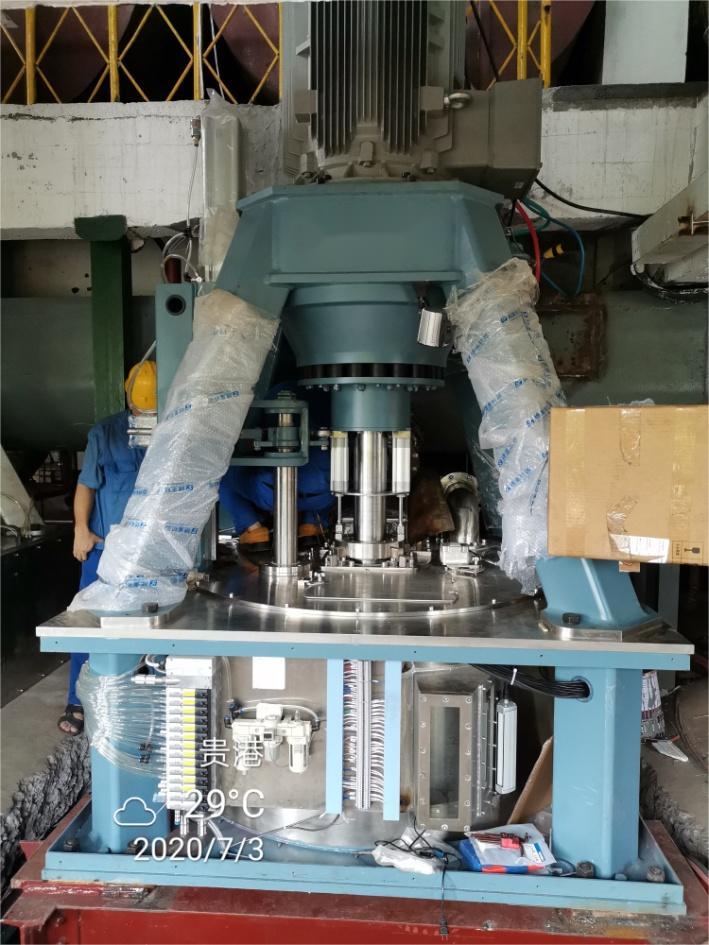

XJZ upper suspension centrifuge
XGZ centrifuge is a kind of automatic centrifuge with overhanging mechanical scraper discharge. It is separated sugar and honey under the action of centrifugal force field, and the unloading process is completed by scraping the sugar from the drum wall through the radial and axial movement of the scraper. The machine is equipped with water washing and steam washing devices to wash the materials fully.
- Description
- Parameter
- Features
- How it works
- Related Products
Description
XGZ centrifuge is a kind of automatic centrifuge with overhanging mechanical scraper discharge. It is separated sugar and honey under the action of centrifugal force field, and the unloading process is completed by scraping the sugar from the drum wall through the radial and axial movement of the scraper. The machine is equipped with water washing and steam washing devices to wash the materials fully.
Parameter
| Model | Maximum capacity(Kg) | Period/h | Rotate speed r/min | Separation factor | Inside diameter of sieve basket(mm) | Height inside the sieve basket(mm) | Maximum loading thickness of sieve basket(mm) | Maximum loading volume(L) |
| XGZ1300 | 1300 | 18-21 | 1200 | 1097 | 1360 | 1050 | 225 | 840 |
| XGZ1500 | 1500 | 18-21 | 1120 | 1054 | 1500 | 1100 | 220 | 973 |
| XGZ1750 | 1750 | 18-21 | 1100 | 1084 | 1600 | 1100 | 230 | 1088 |
Features
1. The machine is equipped with water washing and steam washing device, which can wash the materials fully to meet the needs of sugar making process.
2, this machine is widely used in grape sugar paste honey, is the key equipment in the glucose industry.
3, the machine can also be used to separate the solid grain is finer, viscous, good fluidity, texture is more compact, difficult to use gravity discharge of the material, the general suspension of solid-liquid ratio (weight ratio) 40 ~ 60% is more suitable.
4, the machine performance is good, with the following characteristics:
(1) AC frequency conversion drive, in the automatic cycle operation, frequency conversion stepless speed regulation can greatly meet the requirements of low speed feeding, high speed separation, low speed discharge, etc. According to the change of material performance, the corresponding speed point can be provided to achieve more optimized operation.
(2) Electrical control using programmable logic controller (PLC). The 10-inch color touch screen can set the time of each process, and display the real-time working status of each process, and the operation is flexible, simple and convenient.
The whole machine is controlled by electrical, pneumatic and mechanical joint, to achieve full automatic cycle operation of each process.
(3) Parts in contact with the material are made of austenitic stainless steel, so that the sugar and paste honey can be clean and hygienic.
The overall structure is compact and smooth operation.
(4) Large capacity, high speed, high separation efficiency, large production capacity, high degree of automation, low noise, low labor intensity.
How it works
When the drum rotates at high speed, it will produce centrifugal force greater than thousands of times its own weight, so that the sugar paste on the wall is subjected to centrifugal force, and the sugar grains are trapped in the drum by the screen to form a filter layer. Under the action of centrifugal force, molasses must pass through the filter layer and screen, and then flow out from the wall of the drum hole to complete the separation of crystal and mother liquor.
The separation of sugar paste can be divided into four stages, namely, the formation stage of charging filter layer, the centrifugal honey discharge stage, the honey washing stage and the drying stage.
