GKH siphon type scraper automatic discharging centrifuge
GKH siphon centrifuge is a new product developed on the basis of ordinary horizontal scraper discharge centrifuge. This type of product uses the siphon principle to discharge the filtrate through the siphon device or skimming device, and changes the filtration driving force by adjusting the depth of the liquid level of the siphon (skimming tube) to suck the inlet, so as to adjust the filtration speed, processing capacity, moisture content of the filter cake and washing effect. Equipped with a backflush device to realize the regeneration of the filter cloth and increase the separation effect; Functions such as backflushing, strong washing, and siphoning can be used in special configurations to achieve complete regeneration of the filter cloth.
- Description
- Parameter
- Framework
- Features
- Related Products
Description
GKH siphon centrifuge is a new product developed on the basis of ordinary horizontal scraper discharge centrifuge. This type of product uses the siphon principle to discharge the filtrate through the siphon device or skimming device, and changes the filtration driving force by adjusting the depth of the liquid level of the siphon (skimming tube) to suck the inlet, so as to adjust the filtration speed, processing capacity, moisture content of the filter cake and washing effect. Equipped with a backflush device to realize the regeneration of the filter cloth and increase the separation effect; Functions such as backflushing, strong washing, and siphoning can be used in special configurations to achieve complete regeneration of the filter cloth.

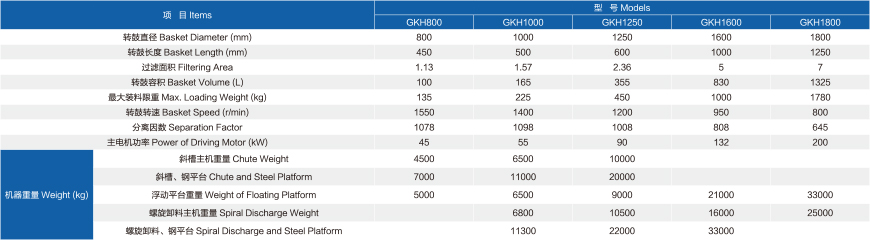

Parameter

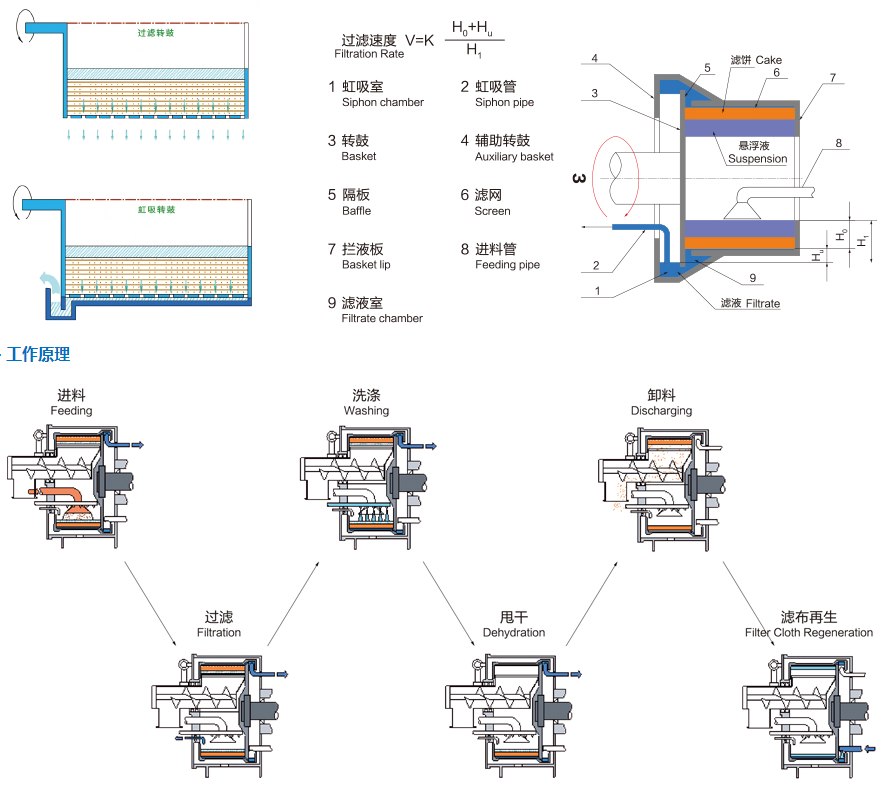

Framework
Features
1. Horizontal structure: floating platform shock absorption system, the machine runs smoothly, and the vibration and noise are small.
2. Flushing device: It can reverse soak and rinse the residual filter cake and filter medium to achieve filter cloth regeneration.
3. Skimming device: suitable for separating materials containing proteins and colloidal substances.
4. Siphon device: hydraulic operation, fully automatic control, smooth operation. Three-position control, can complete separation, deliquidation, washing and other work, accurate angle, good repeatability.
5. Large corner design of door cover: fully automatic hydraulic locking system is adopted, which is safe to operate, more convenient to overhaul, maintain and clean, and has low labor intensity.
